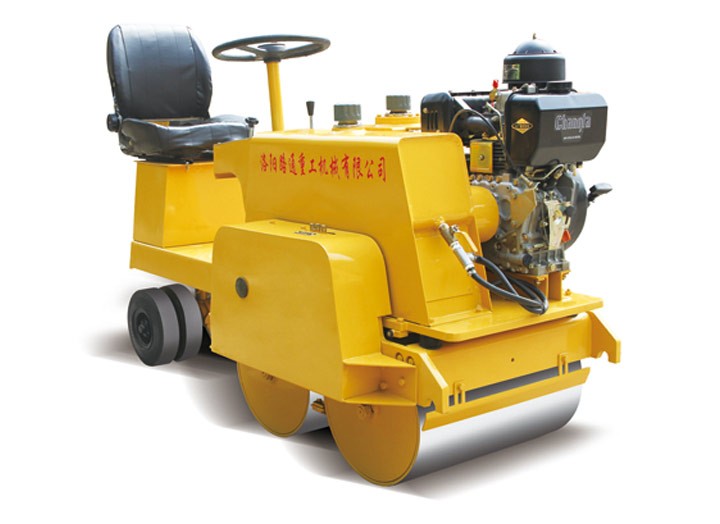

0.8t road roller double drum vibratory road roller

Short Description:

Main Features01The whole machine has a nice shape. Compact structure and small s


  • Engine: CF186F
  • Compaction Width: 2400*880*1100mm
  • Operating Weight: 770kg

Content details






Main Features

01The whole machine has a nice shape. Compact structure and small size; it can do rolling work in narrow ground

02all wheel drive,strong climbing ability;

03Using CF186F veritical direct-spray air –cooled engine,with both electrical and manual startup devices;

04Desigend with guide wheel and joystick, it is labor saving and easy to control.

05Hydraulic travel, adopt imported punp & starting motor, CVT.


Main technical parameter

MODEL


LTC08H

LTC08HZ

Operating mass

Kg

770

800

Static linear load

N/cm

62/62

62/67

Vibration amplitude

Mm

0.25

0.25

Vibration frequency

Hz

48

48

Centrifugal force

Kn

12

12

Travel speed

Km/h

0-4

0-4

Grade ability

%

40

30

Turning speed

mm

2700

3300

Turning angle

±30

±30

Overall dimension

Mm

2400*880*1100

1965*880*1290

Vibration drum diameter

Mm

400

400

Drum width

Mm

600

600

Wheelbase

Mm

470

470

Diesel power/model

Kw

5.68/CF186F

5.68/CF186F

Water tank capacity

L

32

32
