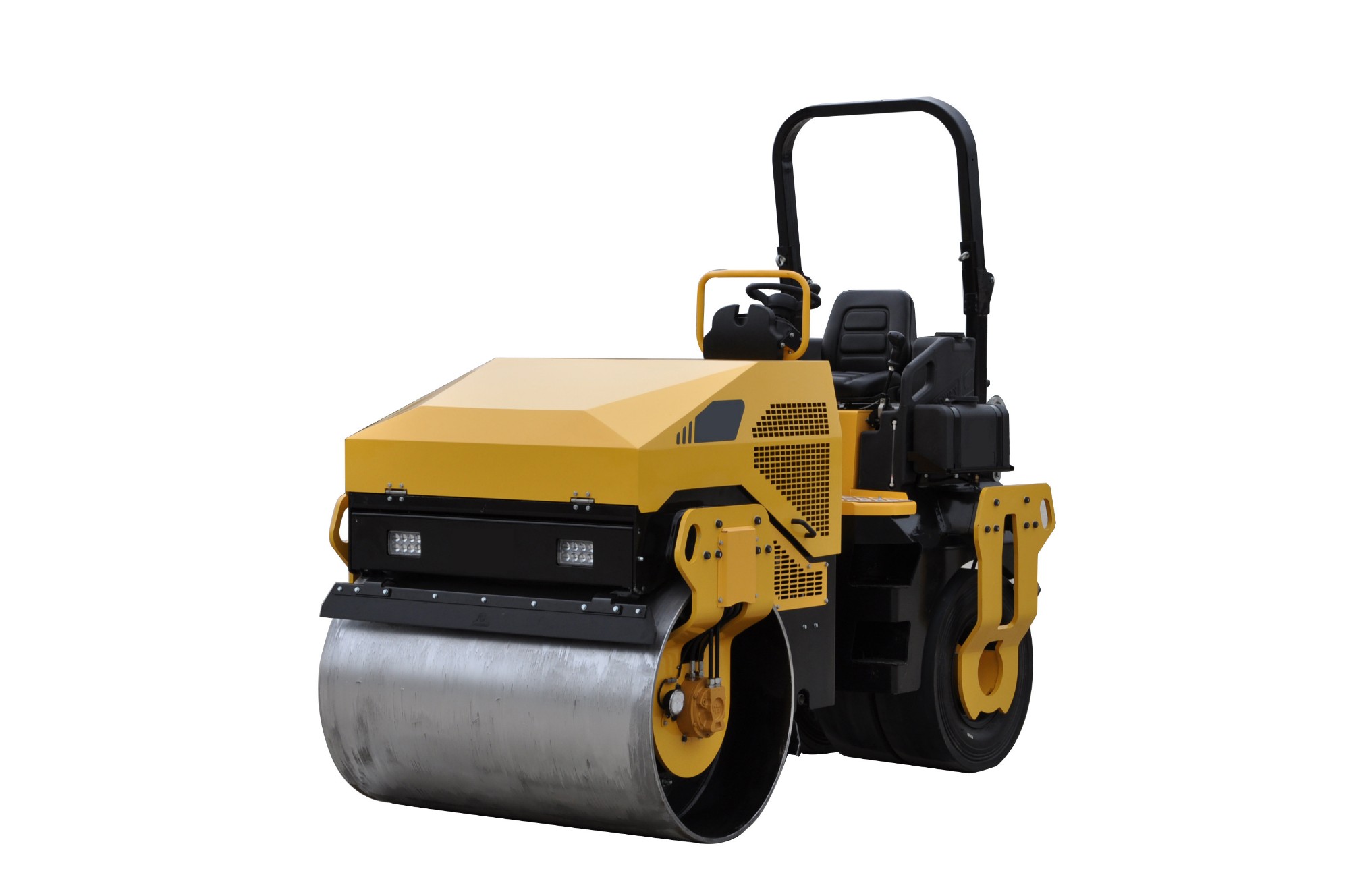

3t road roller

Short Description:

Main Features01Hydraulic double wheels drive,hydraulic front drum vibration and


  • Engine: ZN390B
  • Compaction Width: 2760*1400*2520mm
  • Operating Weight: 3000-4000kg

Content details

Main Features

01Hydraulic double wheels drive,hydraulic front drum vibration and steering ,with reliable performance and optimum function ratio;

02LTC203P hydraulic front and rear wheels drive ,hydraulic front drum vibratory;

03Both front and rear wheels have scraping and water spray unit,advanced sprinkler pump system can achieve intermittent ,greatly expanded mechanical proper working condition;

04Adopt ZN390B diesel engine,Energy conservation and environmental ,very convenient for use and maintenance;

05Compact integral structure,small volume ,capable of used for compaction on narrow site ,with small investment ,quick return of good economic;

06LTC203P rear wheel adopts combination of four slick tires,and has double function,of wheel roller and tire roller,which can effectively improve the rolling quality of asphalt pavement ,and improve the climbing ability;

07LTC203P walking more stable ,damping effect;

08LTC203P High-end seats,has greatly enhanced operator comfort ,reduce fatigue.


Main technical parameter

MODEL


LTC203P

LTC204P

LTC203

Operating mass

kg

3000

4000

3400

Static linear load

N/cm

120/103

150/150

130/130

Vibration frequency

mm

0.5

0.5

0.5/0.5

Centrifugal force

KN

30

40

2*30

Vibration frequency

Hz

50

60

50

Travel speed

Km/h

0-12

0-12

0-12

Grade ability

%

32

40

30

Steering angle

+26

+26

+26

Overall dimension

mm

2760*1400*2580

2850x1520x2700

2760*1400*2520

Drum diameter

mm

700

900

700

Drum width

mm

1250

1400

1250

Quantity of rear tire

Pic

4

4

/

Specification of rear tire


7.50-15

10.5/80-6

/

Thickness of steel wheel

mm

12

12

12

Turning Radius

mm

2800

3000

2800

Water Tank Volume

L

200

240

200

Diesel power/model


23kw/ZN390Q

36kw/ZN490B

23kw/ZN390Q
