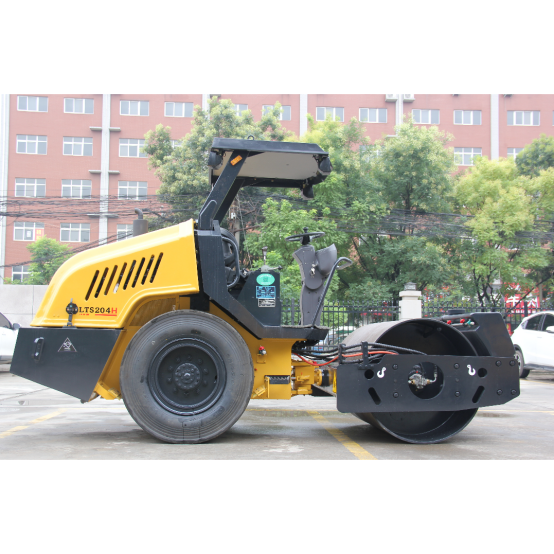

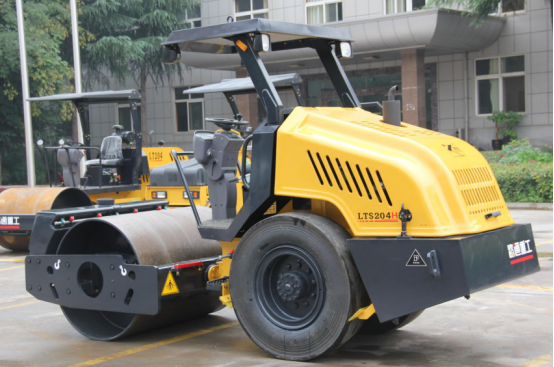

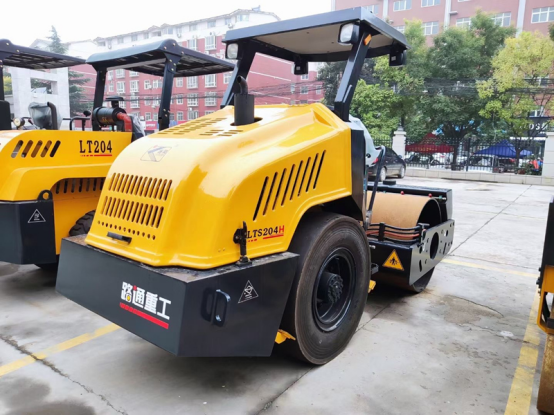

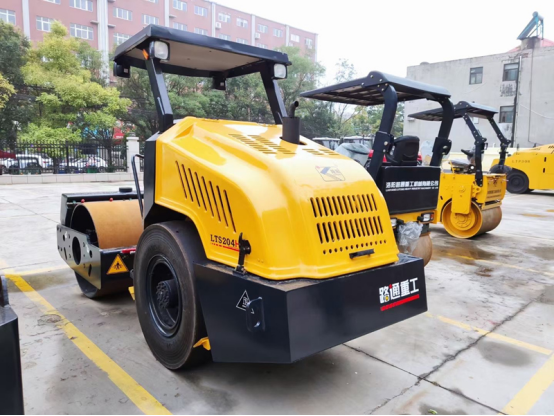

4t road roller
Main Features
01Full hydraulic drive, reliable performance,safety.
02CVT(continuously variable transmission),it is very easy to change the travel speed freely
03Hydraulic vibration, with powerful centrifugal force and excellent compaction density
04Hydraulic articulated steering, flexible outstanding performance.
05High operation efficiency with best economic performance.
06Equipped with large-size hood as engine cover, more convenient for maintenance and repair
07Can be adopted in variable conditions, such like compaction on the asphalt pavement and compaction on the subgrade and fulling materials.
08Tread-pattern driving tires as option
Main technical parameter
MODEL | LTS204H | |
Overall dimension | mm | 3935×1500×2515 |
Operating mass | Kg | 4000 |
Travel speed | Km/h | 0-6.3 |
Rated power/model | Kw | 25/ZN390Q |
Rated speed | r/min | 2600 |
Ground clearance | mm | 260 |
Grade ability | % | 25 |
Turning angle | ° | 30 |
Vibration amplitude | mm | 0.4 |
Vibration frequency | Hz | 45 |
Centrifugal force | Kn | 40 |
Vibration round width | mm | 1350 |
Wheelbase | mm | 1820 |
Turning radius | mm | 4000 |
Water tank capacity | L | 160 |
