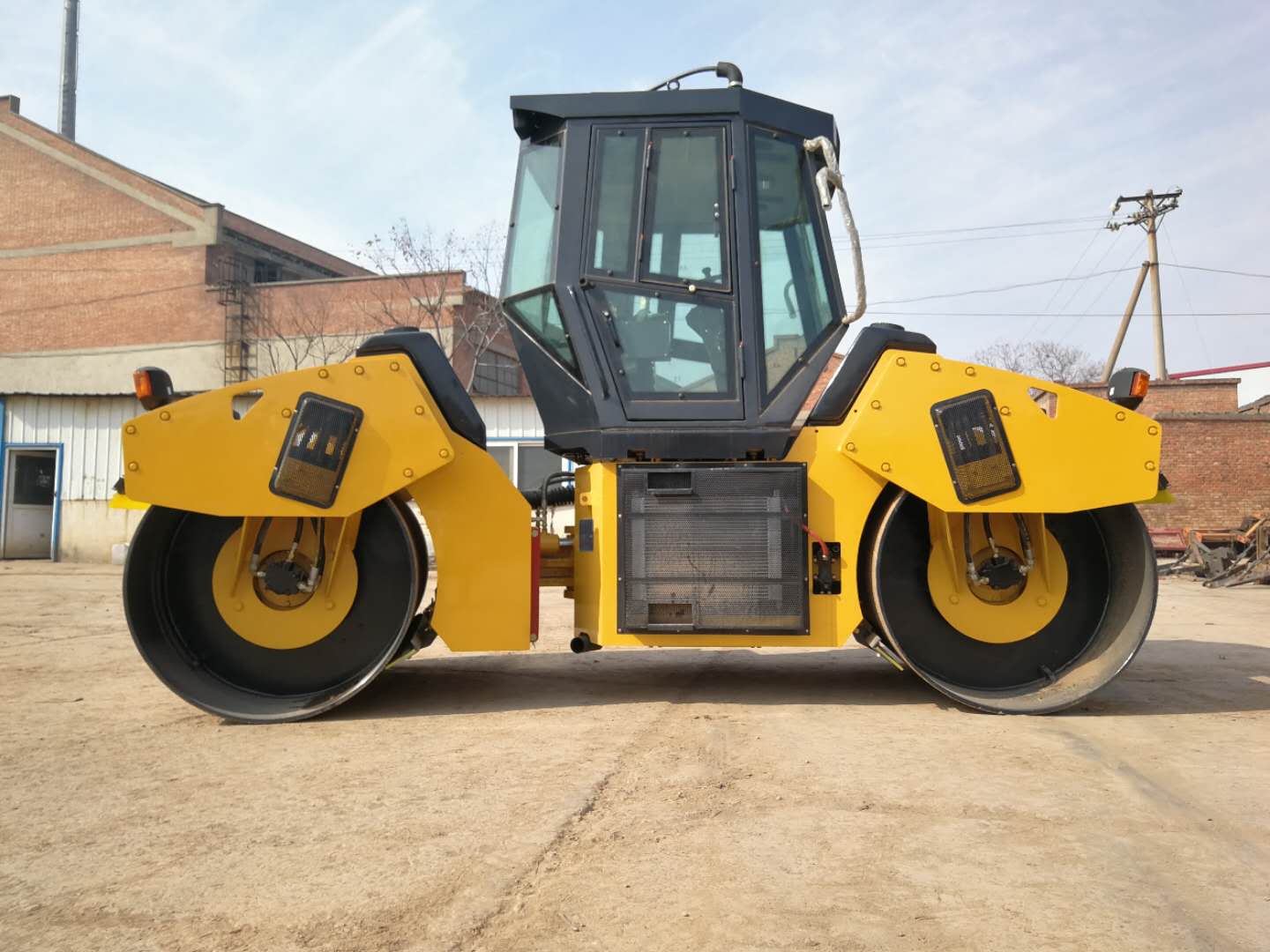

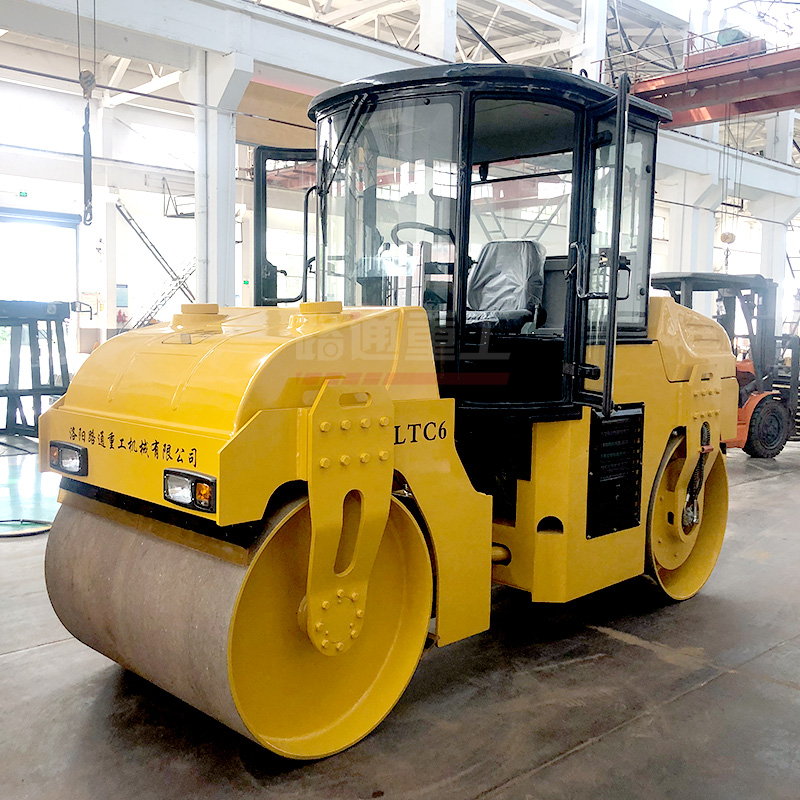

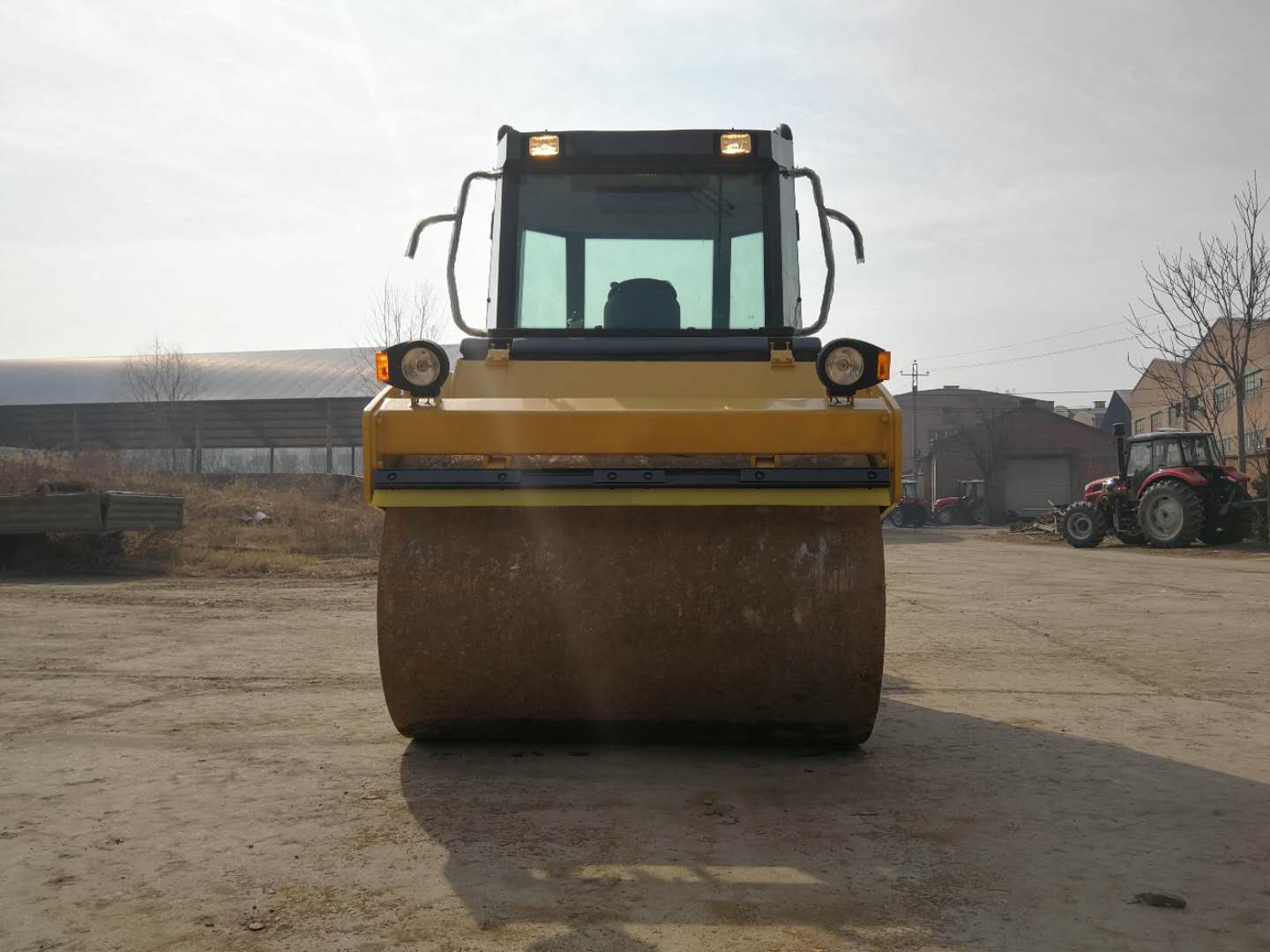

6t road roller

Main Features01Hydraulic vibration and oscillation, great centifugal force and

Content details

01Hydraulic vibration and oscillation, great centifugal force and high compactness.

02Tish roller has articulated frame, hydraulic steering, small turning raming radius and flexible drive.

03Anticorrosive spray water system and fool capacity water tank and electric pressurized sprinkle .

04Shock-proof sock absorber for long life and operate comfortable.

05Close performance is extremely fine and work close building.

MODLE		LTC6	LTC6D
Operating mass	kg	6000	6000
Static linear load	N/cm	232.4	232.4
Drum diameter	mm	950	950
Rolling wudth	mm	1320	1320
Centrifugal force	kN	55
Centrifugal Movement	kN.m		20.6
Oscillatoin frequency	Hz	46	43
Oriental vibration amplitude	mm	0.62
Oscillation amplitude			0.6
Travel speed1stgear2ndgear	Km/h	2.5/7.5	2.5/7.5
Grade ability	%	＞20	＞20
Diesel model		498BG	498BG
Diesel speed	r/min	2200	2200
Diesel power	kW	42	42
Overall dimension	mm	3690×1600×2700	3690×1600×2700
Water tank capacity	L	435	435
