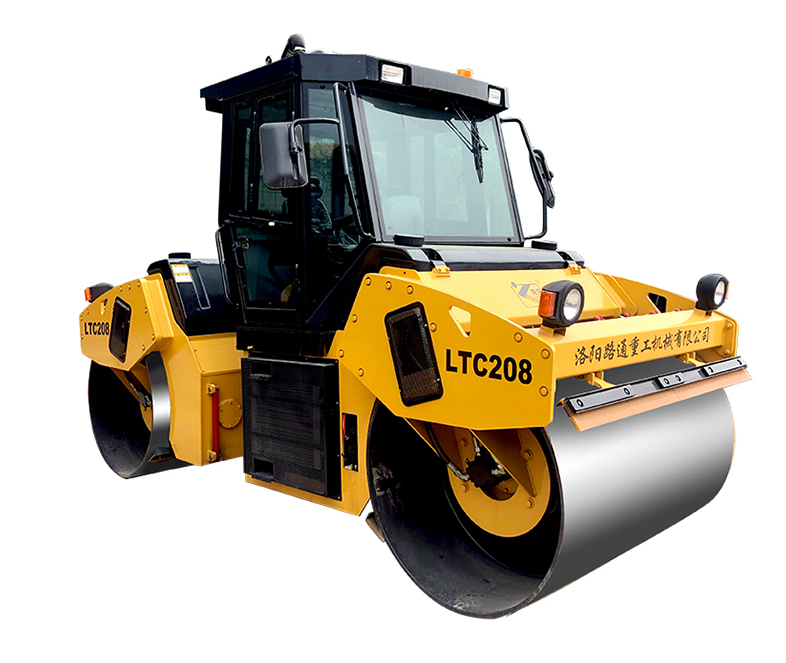

8-10t road roller

Short Description:

Main Features01Articulated connection,flexible steering and small turning radius

Engine: 498BG
Compaction Width: 4380*1710*2560mm
Operating Weight: 8000-10000kg

Content details

Main Features

01Articulated connection,flexible steering and small turning radius ,It adopted the hydraulic braking ,safe and dependable；

02The nose of the roller is narrow with an excellent turning sight；

03A sprinkling set is equipped for evenly sprinkling water on the surfaces front and rear drums；

Main technical parameter

MODEL		2YJ8x10	2YJ6x8
Operating mass	kg	8000/10000	6000/8000
Front linear load	N/cm	242/303	182/242
Rear liner load	N/cm	343/429	257/343
1 gear		2.62	2.62
2gear		5.18	5.18
3gear		10.3	10.3
Grade ability	%	20	20
Turning speed	mm	5050/6450	5050/6450
Overall dimension	mm	447017702620	438017102560
Wheelbase	mm	3220	3220
Ground clearance	mm	240	240
Diesel power/model	Kw	42/498BG	42/498BG
Water tank capacity	L	435	435
