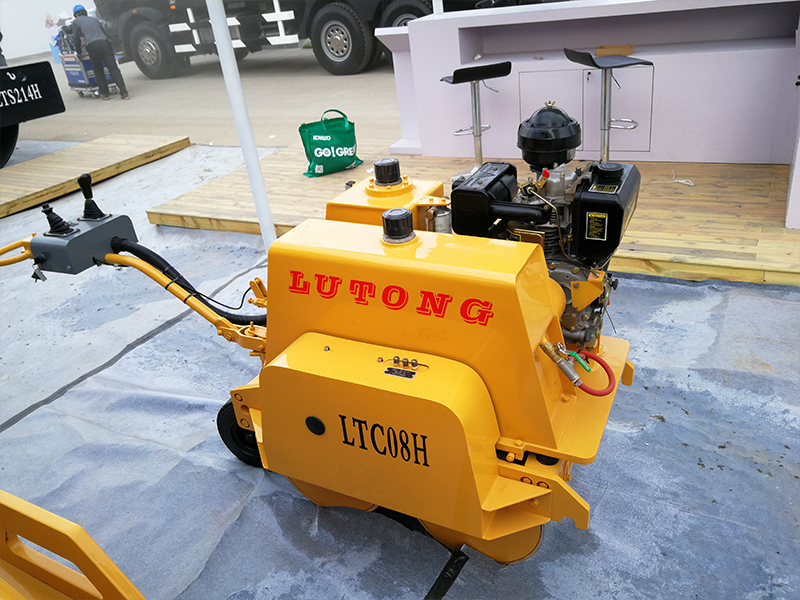

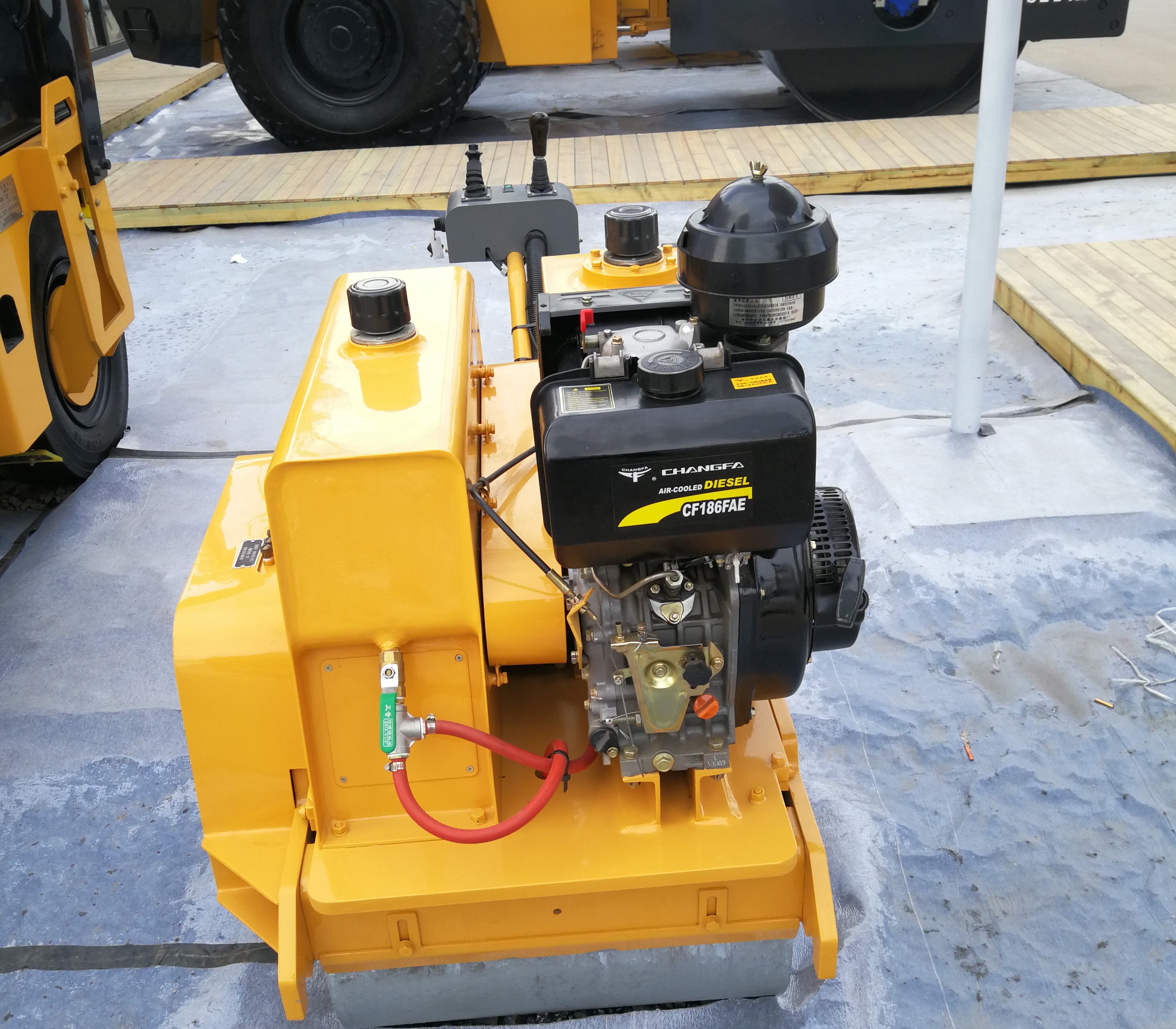

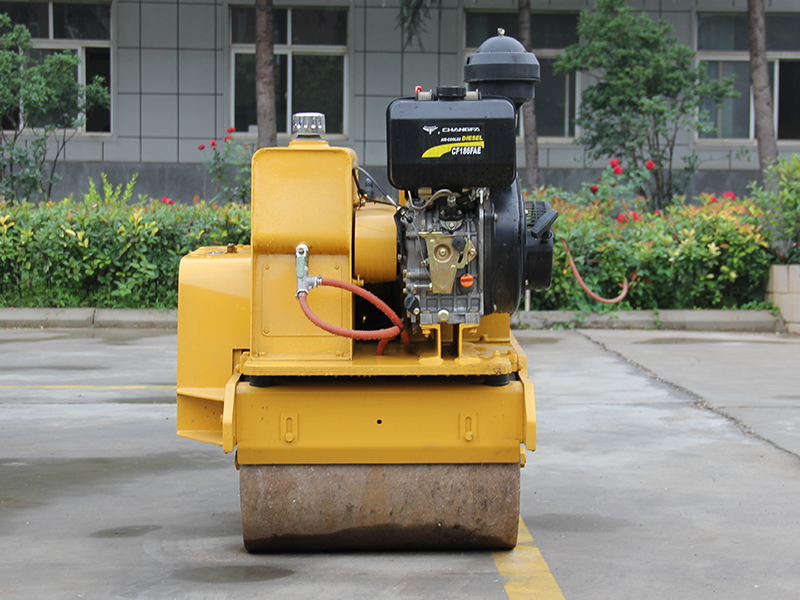

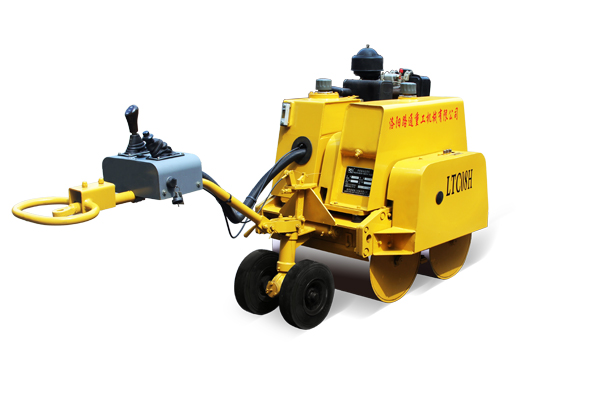

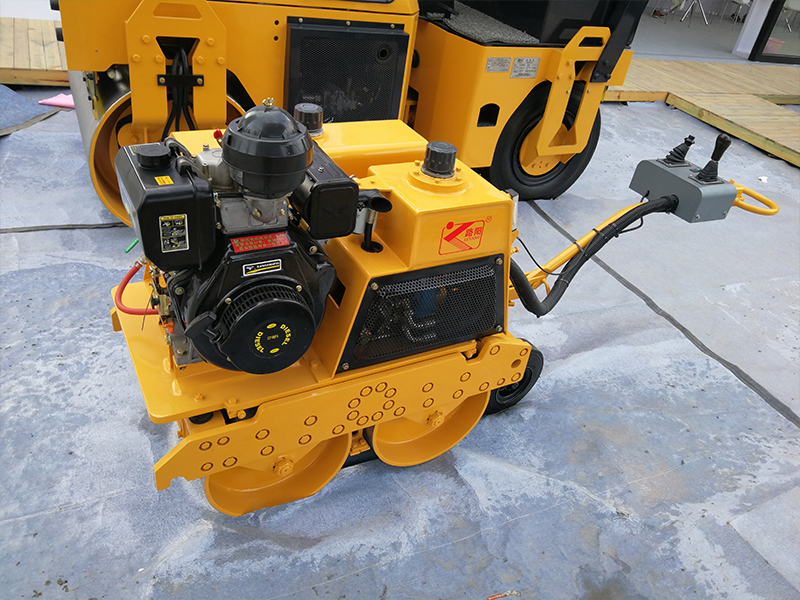

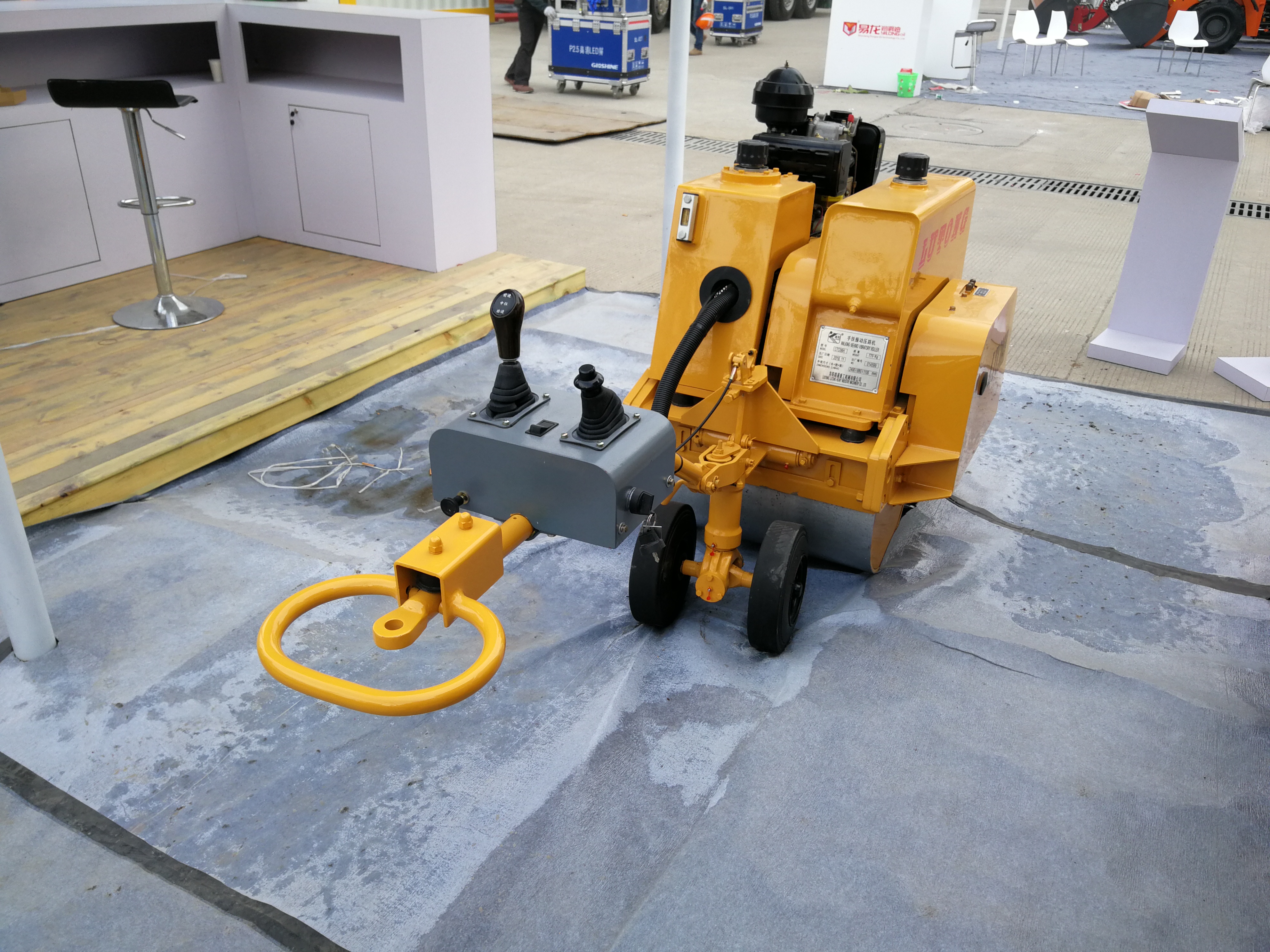

LTC08H LTC08HZ Hydraulic Walking behind vibratory roller

Short Description:

LTC08H LTC08HZ Hydraulic Walking behind vibratory roller


  • Overall dimension: 2400*880*1100
  • Operating mass: 770KG
  • Diesel power: CF186F

Content details


 LTC08H  LTCO8HZ Hydraulic walking behind vibratoryroad roller can be used for muncipal road construction, highway maintenance, and rolling work at narrow road surface, such as foundation of groove wider than 0.8m, building construction, backfiling for pipeline and stadium ground.


Main Features
▲The whole machine has a nice shape. Compact structure and small size; it can do rolling work in narrow ground
▲all wheel drive,strong climbing ability;
▲Using CF186F veritical direct-spray air –cooled engine,with both electrical and manual startup devices;
▲Desigend with guide wheel and joystick, it is labor saving and easy to control.
▲Hydraulic travel, adopt imported punp & starting motor, CVT.

Main Technical Parameters
MODEL
LTC08HLTC08HZ
Operating massKg770800
Static linear loadN/cm62/6262/67
Vibration amplitudeMm0.250.25
Vibration frequencyHz4848
Centrifugal forceKn1212
Travel speedKm/h0-40-4
Grade ability%4030
Turning speedmm27003300
Turning angle±30±30
Overall dimensionMm2400*880*11001965*880*1290
Vibration drum diameterMm400400
Drum widthMm600600
WheelbaseMm470470
Diesel power/modelKw5.68/CF186F5.68/CF186F
Water tank capacityL3232
