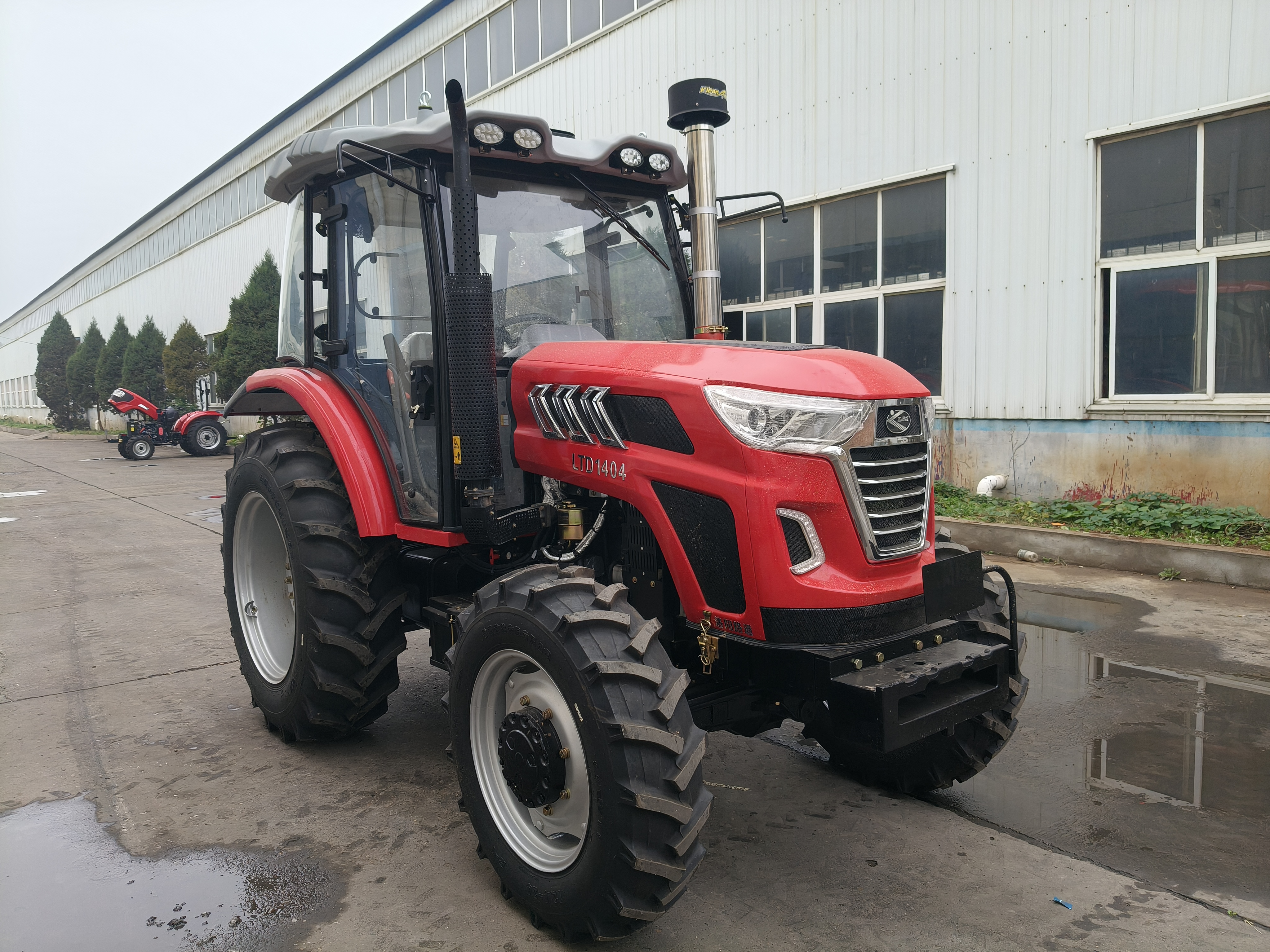

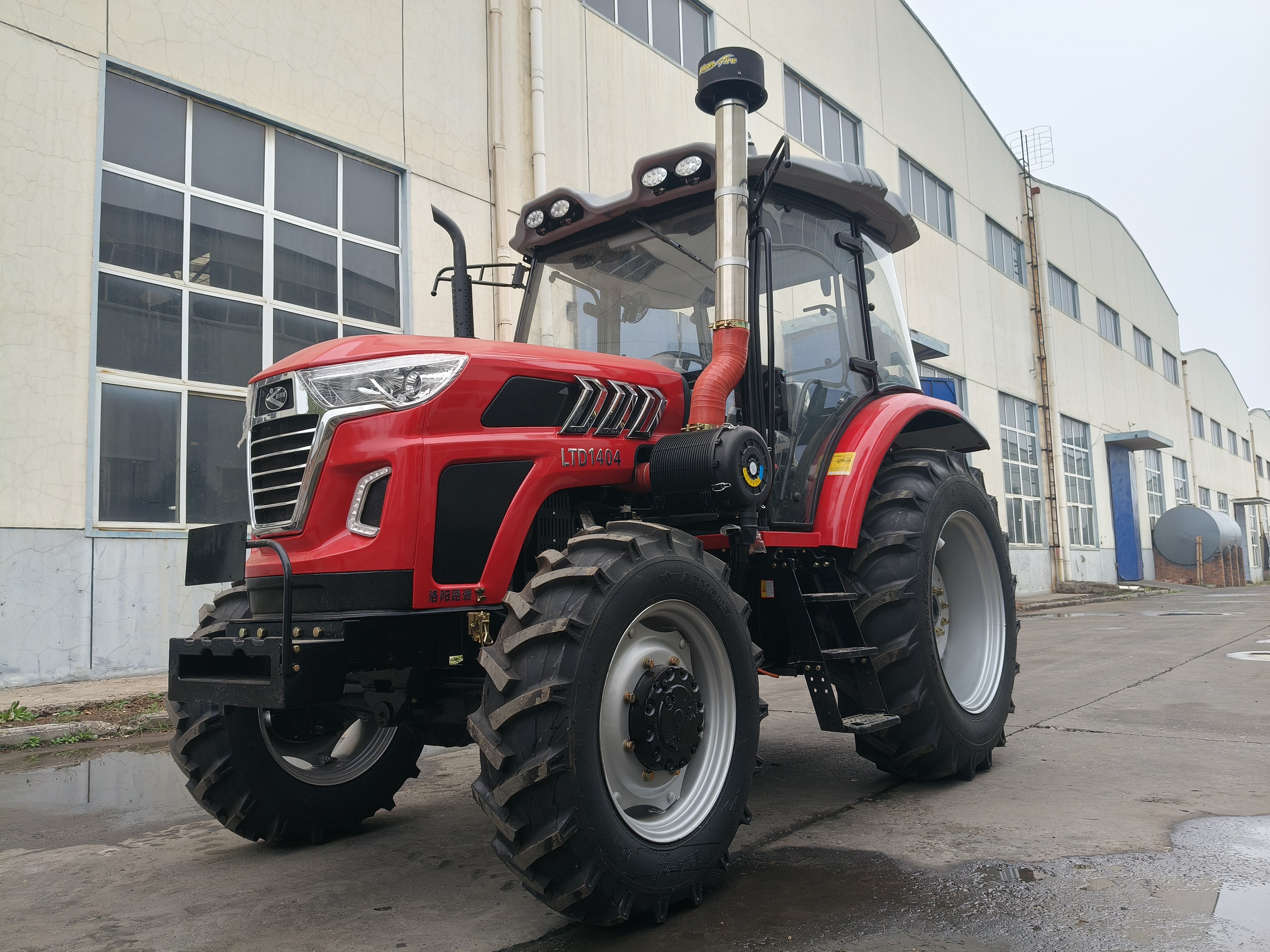

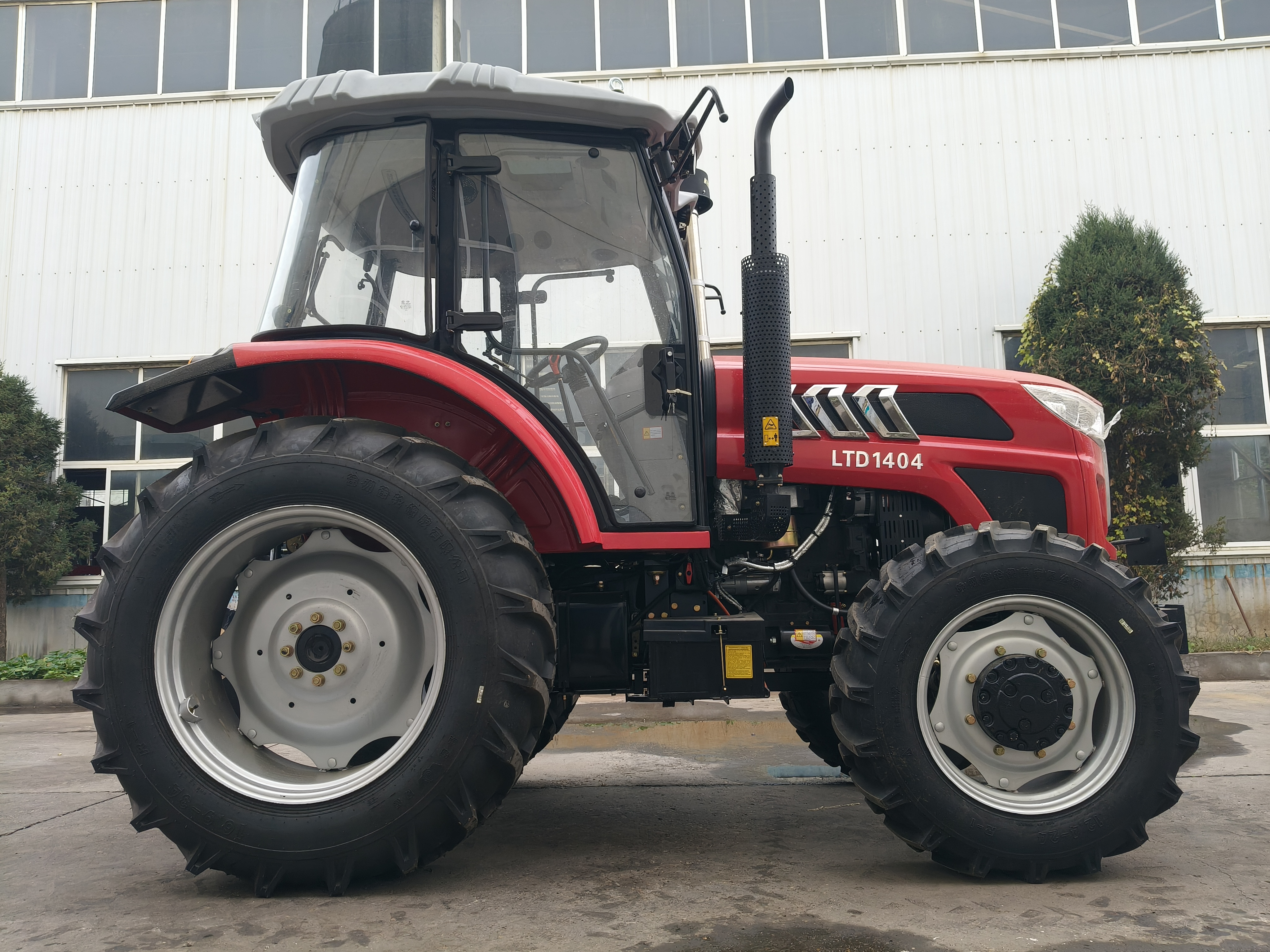

LTD1404-6 Tractor

Short Description:

Luoyang Lutong Agricultural Equipment Co., Ltd. is mainly engaged in the production of large and medium-sized wheel tractors, which are subsidized by Chinese state govemment. Our main products are Lutong 40HP-260HP series. According to the requirements of customers, we have developed a variety of configurations suitable for the market demand, such as widening the wheelbase, heightening the ground clearance, using swing draw-bar and common draw-bar at the same time....

Min. operating weight(kg): 4850
Overall Dimension(mm): 4740×2170×2900
Drive Type: 4WD

CONTACT NOW

Content details

Product Details

	Model	LTD1404-6
Tractor Parameters	Drive Type	4WD
	Overall Dimension(mm)	4740×2170×2900
	Min. operating weight(kg)	4850
	Rated traction force(N)	48020
	Wheel tread (front/rear)	1750/1700
	Wheel base(mm)	2445
	Min. ground clearance(mm)	420
	Min. Turning Radius(mm)	≥6.7
	Theoretical Speed(forward)	0.29～33.45
	Theoretical Speed(reverse)	0.65～14.13
Engine Specification	Engine Model	Vertical, four stroke, direct injection
	Number of cylinders	6
	Engine Rated speed(r/min)	2200
	Engine Rated power (Kw)	103
Drive System	Clutch	Single,dry type,dual-function
	Gear box	4×（3+1）×2
	Main drive	Spiral bevel gearing
	Differential	Closed, 4 planeatry bevel gears
	Differential lock	Mechanical locking differential
	Final drive	Single planeatry gear
Traveling Mechanism	Tyre(front)	13.6-24
	Tyre(rear)	16.9-34
	Steering gear	Full hydraulic front wheel steering
	Brake	Wet type, disc brake, hydraulic control
Working Device	PTO Speed (r/min)	760/850 or 540/1000
	PTO Spline Size	6 splines or 8 splines-φ38mm
	Max. lifting force( KN )	24700
	3-Point suspension	Category:II
