LTP1016 Hydraulic pneumatic tyre road roller 10 tons to 16 tons
LTP1016H Hydraulic Tyre road roller
Pneumatic tyre roller series are designed for the compact cohesive and non-cohesive materials, such as asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, Rolling Cement Concrete(PCC)in the construction projects, especially suitable for the preparation of the upper courses of high grade highway.
Main Features
▲LTP1016 Low gravitational center designed for safe and comfortable operation.
▲Three forward speed and two backward changes.Reinforced plastic spraying box and multi-layer water filter ensure the stability of the system.
▲With stepless speed changes LTP1016H is easy and reliable to operate.
▲Power strength, LTP1016H which adopted 4BT3.9 Cummins engine,is suitable to all environments.
Main technical parameter
| MODEL | LTP1016H | |
| Operating mass （Unballast/Ballast） | kg | 10000/16000 |
| Max. travel speed | Km/h | 14 |
| Tyre quantity(front+rear) | pcs | 4+5 |
| Min.turning radius | mm | 7500 |
| The presses the width | mm | 2280 |
| Grade ability | % | 30 |
| Overall dimension | mm | 5000×2280×3200 |
| Wheelbase | mm | 3700 |
| Diesel power | KW | 75 |
| Diesel model | 4BT3.9 |
Product Inquiry
Related PRODUCTS
-

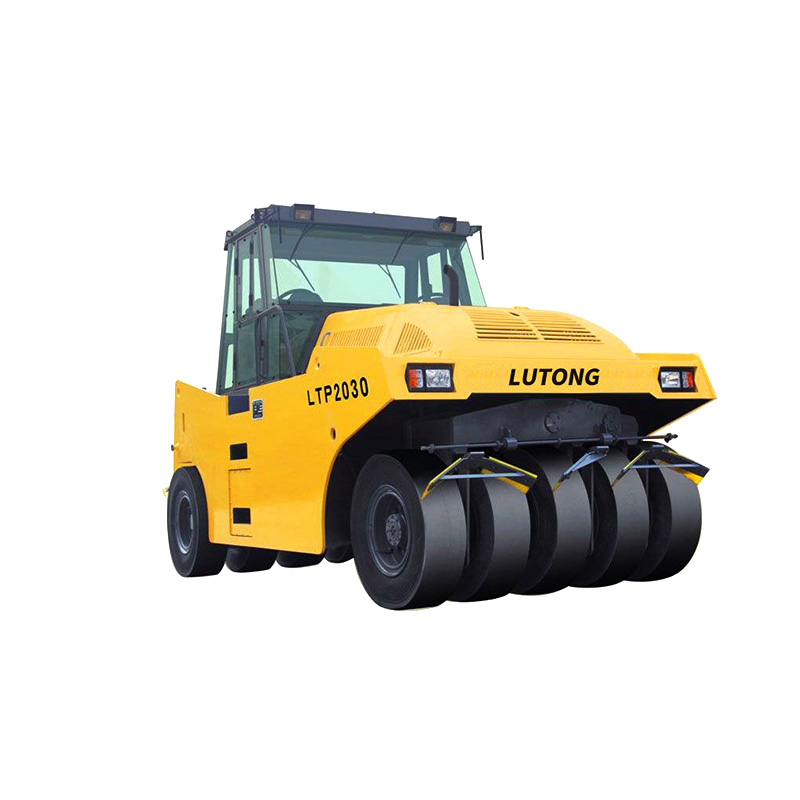

LTP2030H Hydraulic pneumatic tyre road roller 20 tons to 30 tons
-
