Mechanical heavy duty single drum vibratory rollers effect powerful centrifuga force and great static linear load, are suitable for non-cohesive materials, such as sandy soil,gravel,crushed stones, rock fillings and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, dams, airports, harbors, railways and industrial areas etc.
Main Features
1. Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance.
2. Reliable CUMMINS diesel engine for convenient operation and maintenance.
3. Two sets of brake devices, a hand brake and foot pedal brake, assure the machine's safety and dependability.
4. Spacious and comfortable cab mounted on top quality rubber damping elements.
5. World advanced technology is adopted for the hydraulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost.
6. Equipped with padfoot or removal padfoot as option.
MAIN TECHNICAL PARAMETERS

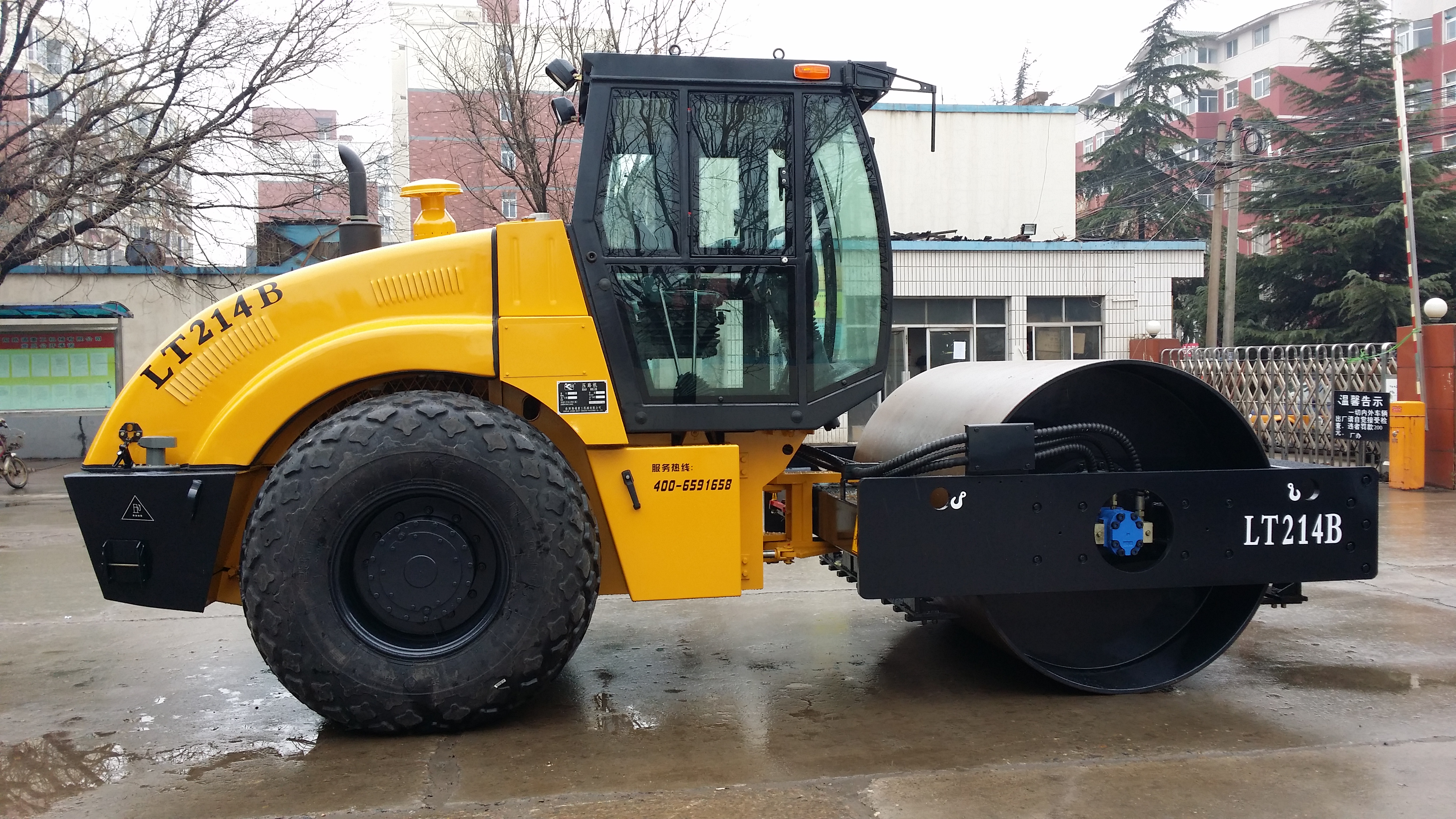

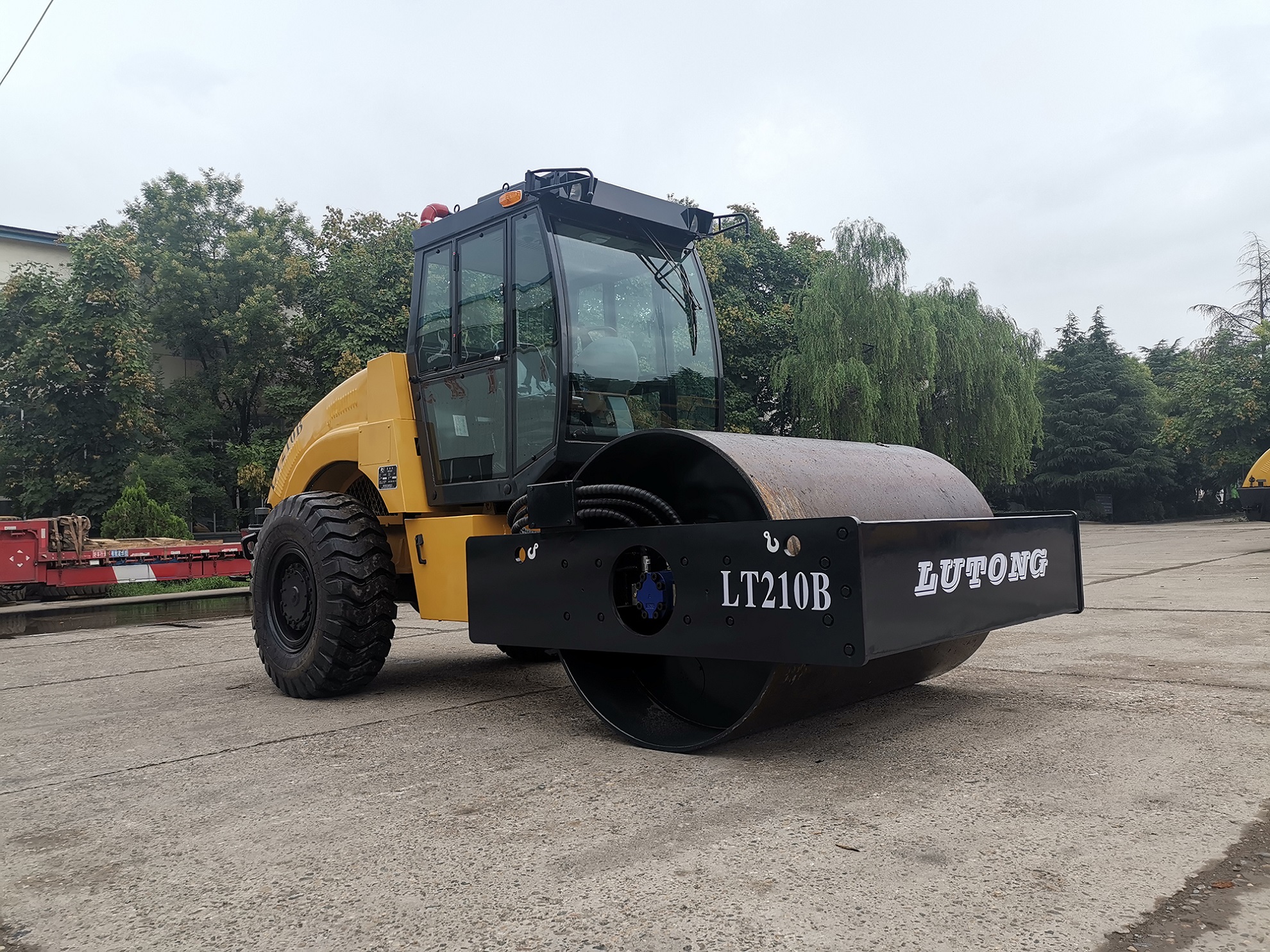

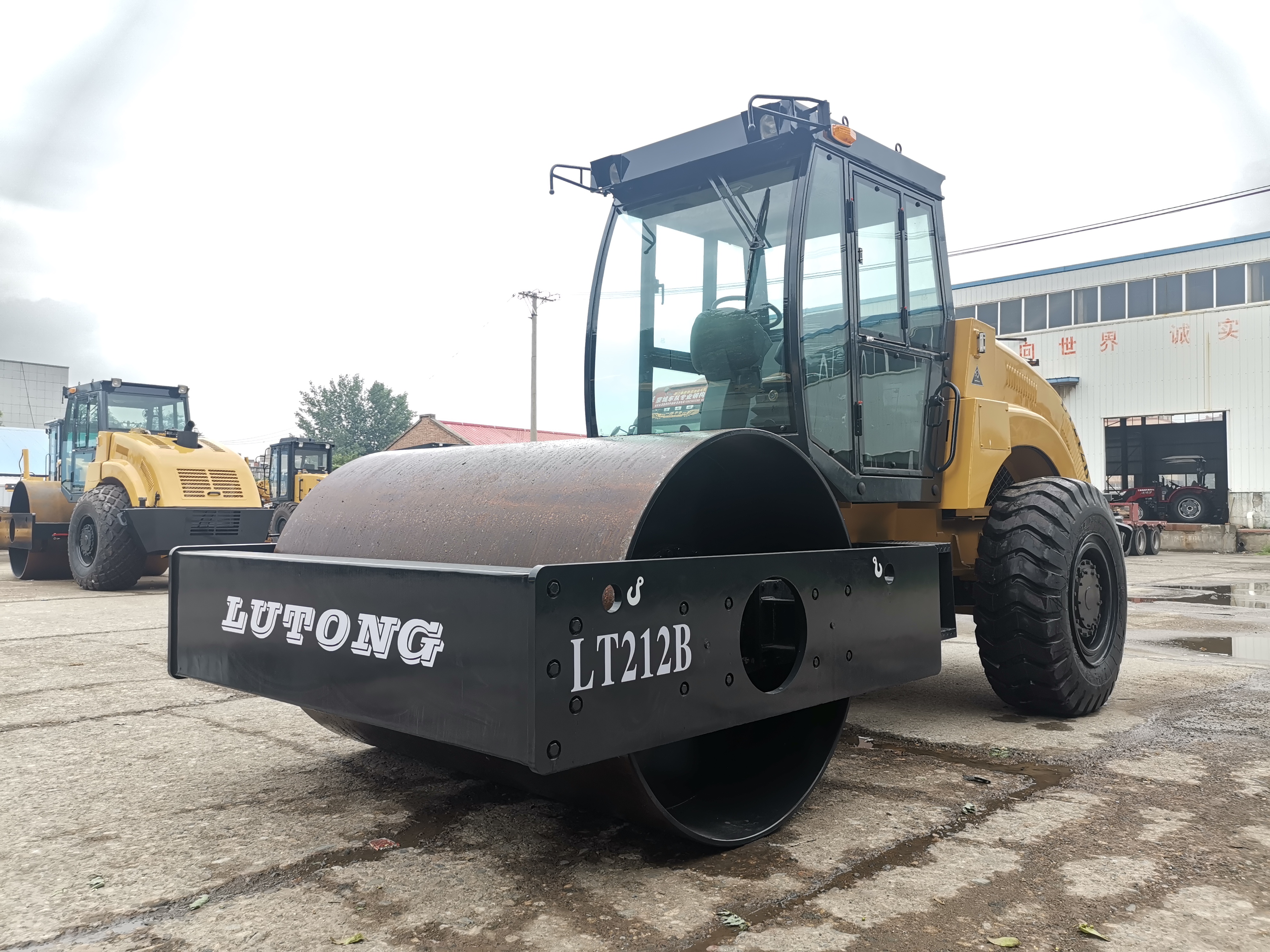

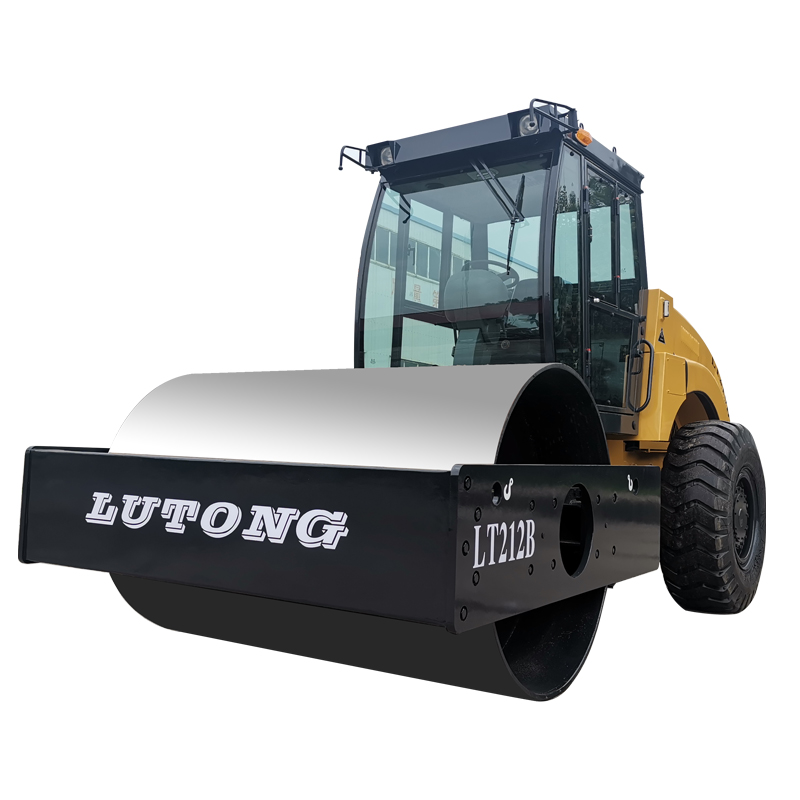

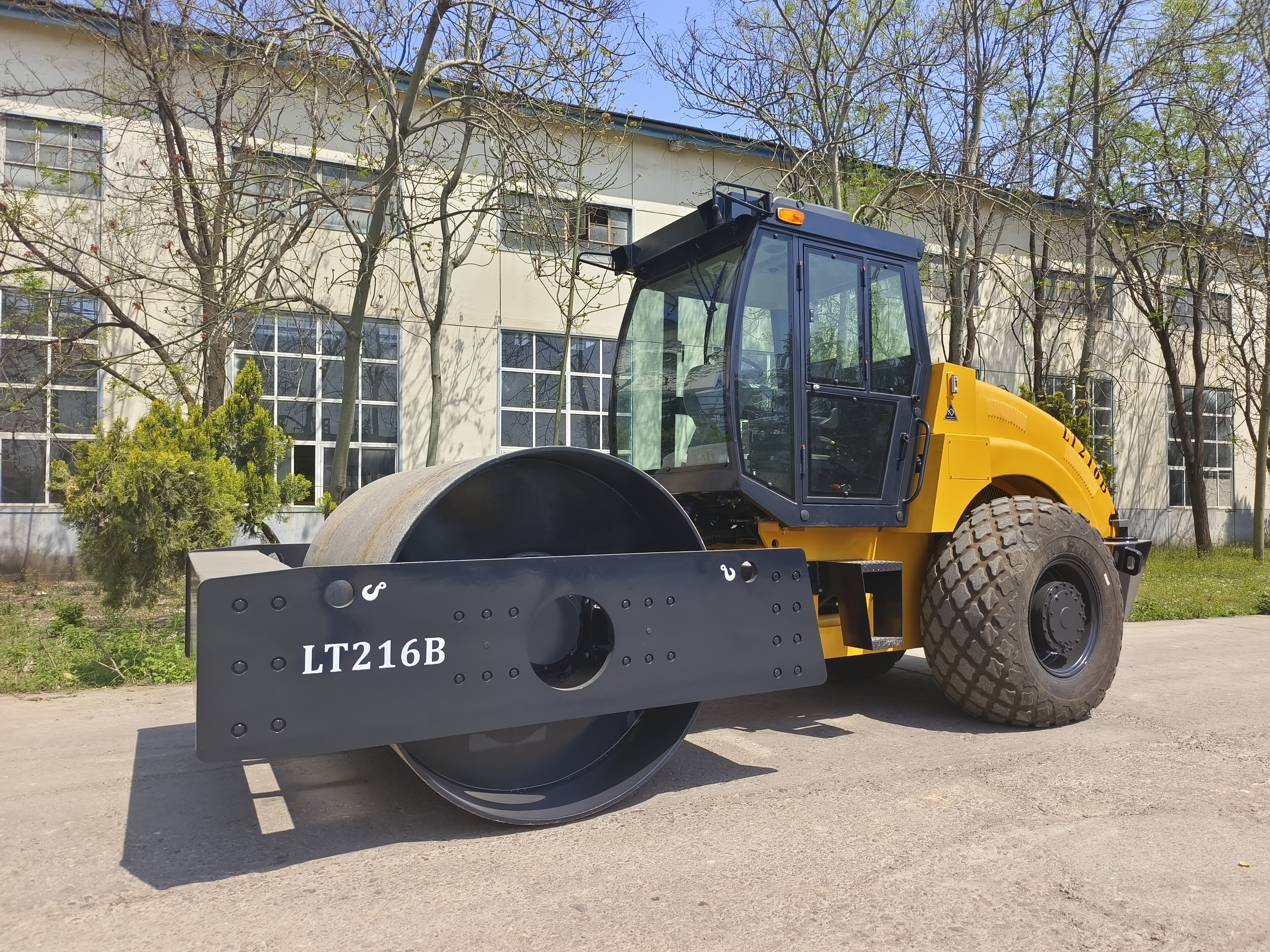

| MODEL | LT216B | LT214B | LT212B | LT210B | |
| Operating mass | Kg | 16000 | 14000 | 12000 | 10000 |
| Static linear load | N/cm | 380 | 326 | 280 | 260 |
| Vibrating amplitude | Mm | 1.8/0.9 | 1.7/0.8 | 1.6/0.8 | 1.6/0.8 |
| Vibrating frequency | Hz | 30 | 30 | 30 | 30 |
| Centrifugal force | KN | 320/180 | 290/160 | 260/160 | 250/150 |
| Travel speed | |||||
| 1st gear | 2 | 2 | 1.7 | 1.7 | |
| 2nd gear | 4 | 4 | 3.4 | 3.4 | |
| 3rd gear | 10.5 | 10.5 | 9 | 9 | |
| Grade ability | % | 30 | 30 | 30 | 30 |
| Turning radius | mm | 7000 | 7000 | 7000 | 7000 |
| Overall dimension | mm | 6025×2280×3050 | 5900×2280×3050 | 5610×2258×3000 | 5610×2258×3000 |
| Ground clearance | mm | 432 | 432 | 360 | 360 |
| Diesel model | CUMMINS 6BT5.9 | CUMMINS 6BT5.9 | CUMMINS 6BT5.9 | CUMMINS 6BT5.9 | |
| Diesel power | Kw | 110 | 97 | 97 | 97 |
| Tyre Size | 23.1-26 | 23.1-26 | 17.5-25 | 17.5-25 | |
| Vibration round width | mm | 2100 | 2100 | 2100 | 2100 |
| Wheelbase | mm | 3265 | 3185 | 3080 | 3080 |
