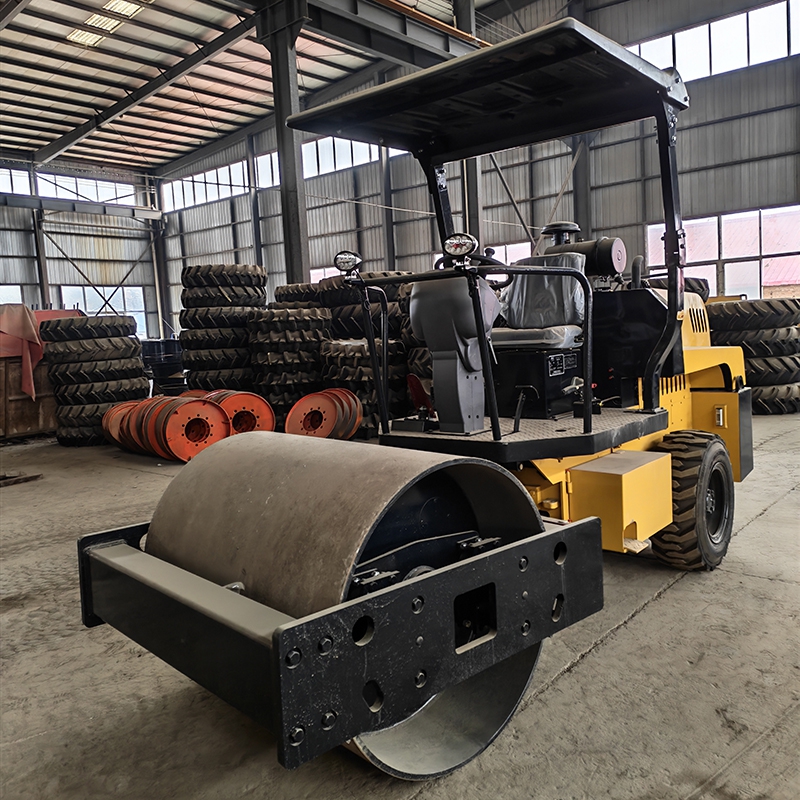

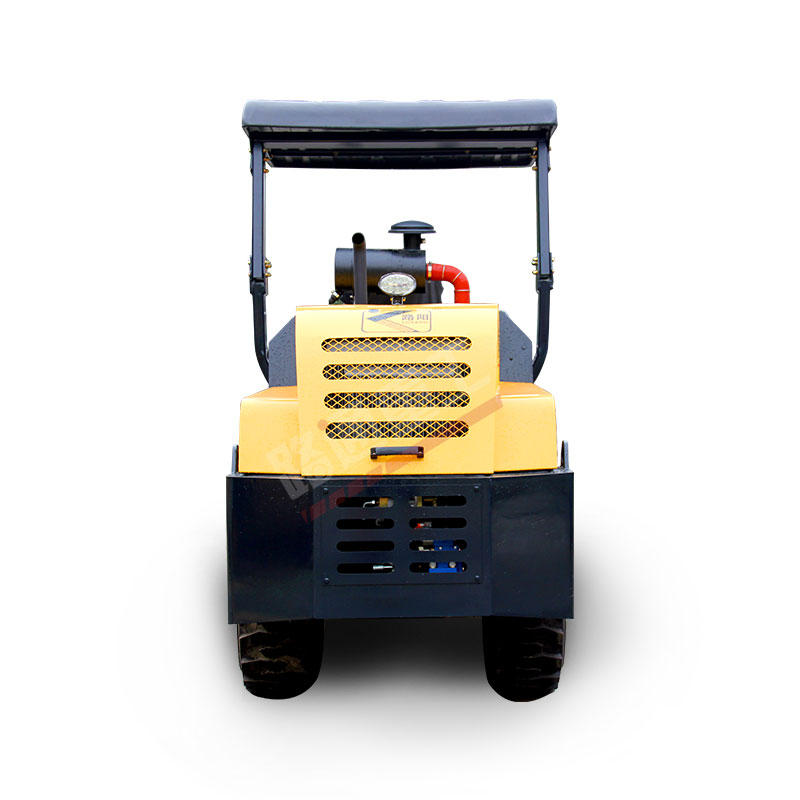

Compaction is a critical process in road construction. The efficiency and quality of compaction directly affect pavement structural stability, construction schedule, and overall project quality. The LT304 single-drum vibratory roller features a proven machine configuration and solid performance, suitable for a wide range of compaction applications. It helps improve pavement density and smoothness and optimize construction efficiency, providing dependable equipment support for civil engineering and road construction projects.

1. Effective Compaction Performance for Stable Pavement Structure

Proper compaction reduces voids between construction material particles, increases overall density, enhances pavement load-bearing capacity and structural stability, minimizes potholing, surface damage, and water infiltration, and reduces moisture-related deterioration of the base layer, thereby extending pavement service life.

The LT304 is equipped with a dedicated vibratory compaction system delivering up to 45 kN of centrifugal force at a vibration frequency of 46 Hz. The compaction force penetrates uniformly, contributing to consistent compaction accuracy and uniformity across the paved surface. The resulting pavement is smooth and dense, meeting quality standards for various road construction applications.

2. Stable Powertrain for Fuel-Efficient Operation

The machine employs a full-hydraulic vibration system with a wide operating range and smooth response, suitable for compacting materials of different types and layer thicknesses. The power unit features a China Stage IV emission-compliant diesel engine with a rated power output of 36.8 kW, delivering stable and sufficient power. The engine is characterized by low failure rates and high durability, matching the power requirements of typical construction conditions.

The powertrain is optimized for fuel efficiency without compromising continuous high-output operation, helping reduce long-term operating costs and improve overall cost-effectiveness.

3. Responsive Handling for Diverse Working Conditions

The roller features stepless speed control and an integrated control lever, allowing the operator to perform forward and reverse travel, speed adjustment, braking, and vibration on/off through a single control interface. The straightforward control logic reduces operator workload and helps improve construction efficiency.

With a steering angle of up to 30 degrees and a turning radius of 4,965 mm, the compact machine layout provides good maneuverability, enabling operation in confined work areas and addressing compaction challenges in restricted spaces.

4. Service-Friendly Design for Reduced Maintenance Costs

The machine is designed with a wide-opening engine hood, providing clear access to core maintenance areas and convenient reach to all service points. This facilitates routine inspection, maintenance, and servicing, streamlining maintenance procedures and reducing maintenance time and costs.

The hydraulic system incorporates original imported components from internationally recognized brands, offering stable performance and low failure rates. This enhances overall machine reliability and service life, reduces downtime for repairs, and helps maintain consistent construction progress.

5. Broad Application Versatility

The LT304 single-drum vibratory roller is suitable for a broad range of applications, including new construction and maintenance of municipal roads, highway maintenance, and other road engineering projects. It effectively compacts common construction materials such as asphalt, aggregate, and soil, helping ensure pavement smoothness and structural durability.

Thanks to its compact size and maneuverability, the machine is also suitable for foundation compaction at construction sites, county and township road construction, alley renovation, trench backfill, parking lots, and garden lawn areas, meeting the requirements of refined compaction work across various sectors.

Overall, the LT304 single-drum vibratory roller offers balanced compaction performance, stable power output, responsive handling, convenient maintenance, and broad application versatility. It addresses the requirements of small- to medium-scale compaction projects and serves as a practical compaction solution for municipal, civil engineering, and road maintenance applications.
